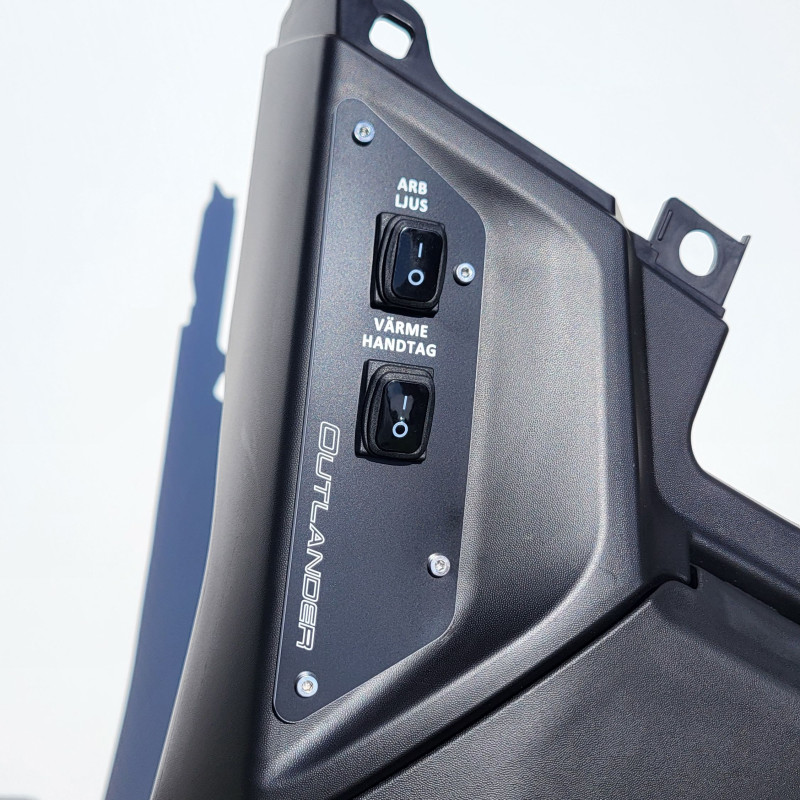

Switch panel Can-am Outlander 2025 G3 LEFT "set"

Whats included:

Laser engraved and cut switch panel made of heavy duty industrial plastic laminate.

High quality waterproof rocker switches, 13x19mm

on/off switches, IP65,  (should be used with power relay)

M3 screws stainless-A4

NOTE!

This is for Can-am Outlander 2025 G3 LEFT SIDE

Maximum 2 switches fits this panel.

CUSTOM TEXT!

⚠️ Please double-check at checkout that your text is correct.

You choose your own text for each switch by typing it below in the custom text form, remember to hit save button.

Exampel: 1, LED BAR 2, HALO LIGHTS 3, REAR LIGHTS.

Optimal is 5 (max 6) character per row and max 2 rows per switch.

We will adjust text size if you use to long words!

INSTALLATION

· Temporary place panel centered and level

· Drill 3mm holes for screws, temporary put one screw in after every hole drilled so it does not move during the rest of the holes

· Draw lines for cutting out for switches

· Remove panel and cut the vehicle plastic, ad some margin for the switches

· Install panel and switches, only hand tighten the screws until seated.

IMPORTANT

· Nuts are self-locking

· Screws and nuts are stainless steel

· Don’t use Loctite on nuts

· Only hand tighten the screws until seated

· Don’t clean panel with strong solvents

· Switches can handle 10A but we strongly advise you to use power relay

· Switches are IP65 rated on the front, if vehicle is used as a submarine it’s good to also seal backside with Plastidip or other product for sealing electronics
